Controller (general ) |
U
T
H
-
2
0
0 |
 |
▶ Temperature range : -9℃ ~114℃ (Temperature range can be changed.)
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ No. of circuits : 1 circuit individual
▶ Permitted current : 1 heating * 18A
▶ Load capacity : 4KW
▶ Size : 70(W) X 120(H) X 40(D)
▶ Colors : Gold / Silver
▶ Display Type : High brightness blue type LCD , touch mode
▶ Processor Type : sensor type(NTC 5KΩ) / timer setting allowed. |

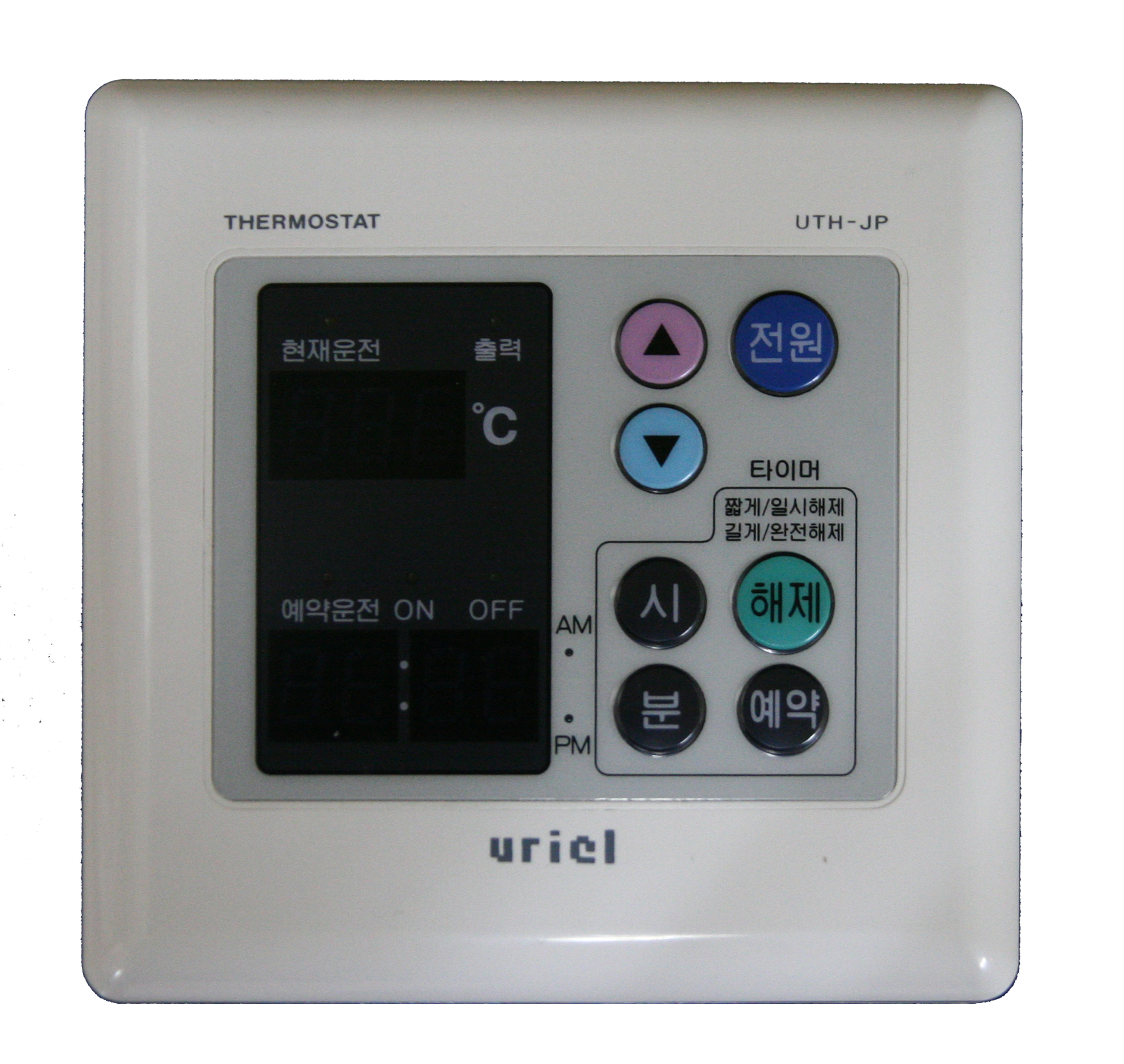

U
T
H
-
J
P
|
 |
▶ Temperature range : -20℃ ~80℃ (Temperature range can be changed.)
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ No. of circuits : 1 circuit
▶ Permitted current : 25A
▶ Load capacity : 6KW
▶ Installation type : buried
▶ Size : 115(W) X 115(H) X 48(D)
▶ Display Type : High brightness VFD (current/setting temperature display),
LED(status),
current/reserved time display
▶ Processor Type : sensor type (NTC 5KΩ) / Level Type (1~10 Level) / Timer Function |
Controller (communication ) |
U
T
H
-
2
0
0
R
S |
 |
▶ Temperature range : -20℃ ~180℃ (Temperature range can be changed)
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ No. of circuits : 1 circuit individual
▶ Permitted current : 1 heating * 18A
▶ Load capacity : 4KW
▶ Installation type : exposed(attached)
▶ Size : 70(W) X 120(H) X 40(D)
▶ Colors : Gold / Silver
▶ Display Type : High brightness blue type LCD , touch pad
▶ Processor Type : sensor type(NTC 5KΩ) / timer setting |
Main control
14
circuit |
 |
▶ Communication range : 1 circuit ~ 14 circuits, bi directional communication
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ Communication type : 485 comm
▶ Use : Entire circuit management
▶ Installation type : exposed (wall hanging)
▶ Size : 120(W) X 120(H) X 30(D)
▶ Display Type : High brightness FND (current/setting temperature display) , LED(status), circuit details displayed, bi directional control
▶ Processor Type : Bi directional communication with the sub |
Main control
128
circuit |
 |
▶ Communication range : 1 circuit ~ 128 circuits, bi directional communication
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ Communication type : 485 comm , 232 comm
▶ Use : Entire circuit management
▶ Installation type : exposed, wall hanger
▶ Size : 280(W) X 240(H) X 42(D)
▶ Display Type : High brightness FND (current/setting temperature display) , LED(status), circuit details displayed, bi directional control
▶ Processor Type : Bi directional communication with the sub |
Multi circuil US-1000D
|
 |
▶ Temperature range : -20℃ ~180℃ (Temperature range can be changed)
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ No. of circuits : 3 circuits ~ 28 circuits set (single phase, triple phase)
▶ Permitted current : Each circuit *18A
▶ Load capacity : 4KW
▶ Installation type : buried
▶ Size : 300(W) X 400(H) X 110(D) 7 circuits included.
580(W) X 400(H) X 110(D) 14 circuits included.
860(W) X 400(H) X 110(D) 21 circuits included.
▶ Display Type : High brightness FND (current/setting temperature display) , LED(status)
▶ Processor Type : Sensor type (NTC 5KΩ) /timer setting |
Multi circuit communication
US
-
1000RS |
 |
▶ Temperature range : -20℃ ~180℃ (Temperature range can be changed.)
▶ Input power : AC 85V ~ AC 265V (SMPS type)
▶ No. of circuits : 3 circuits ~ 28 circuits set (single phase, triple phase)
▶ Permitted current : Each circuit *18A
▶ Load capacity : 4KW
▶ Installation type : buried
▶ Size : 300(W) X 400(H) X 110(D) 7 circuits included.
580(W) X 400(H) X 110(D) 14 circuits included.
860(W) X 400(H) X 110(D) 21 circuits included.
▶ Display Type : High brightness FND (current/setting temperature display ) , LED(status)
▶ Processor Type : Sensor type (NTC 5KΩ) /timer setting |
|
|
