 Quality Assurance Procedure/ Film Selecting Method
|
| |
 |
| |
| |
| |

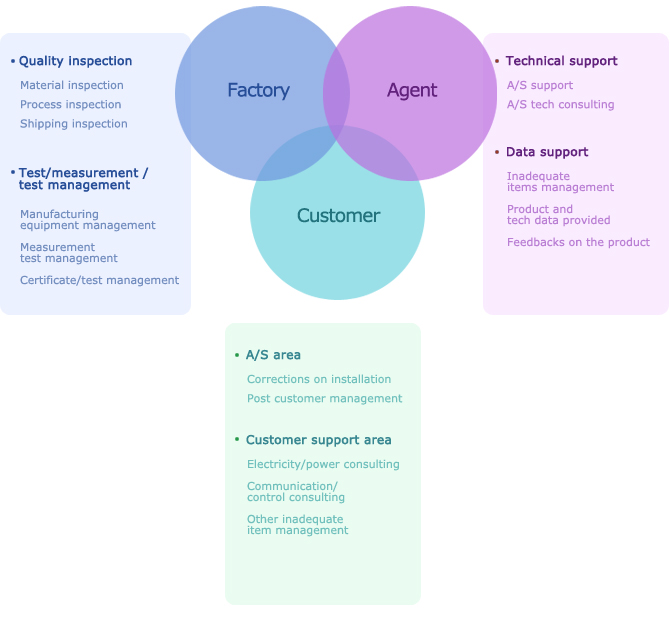

| Quality inspection business and processing
|
| |
Material inspection |
Process inspection |
Shipping inspection |
Checking adequacy of each item standard.
Conveying the qualified material to the manufacturing process.
Returning the failed materials immediately. |
Checking adequacy of the manufacturing standard.
Quality inspection of the qualified products.
Disposing the failed materials immediately. |
Checking adequacy of the quality standard.
Shipping of the qualified products.
Disposing the failed product immediately. |
- Raw materials
P.E.T, P.E, carbons - main materials
Main item inspection and test reports and analysis
- Sub materials
pipes, boxes
Durability test to check suitability for distribution |
P.E.T, P.E mixing test
Carbon resistance test
Heat value test
Drying condition test
Contraction rate test |
Carbon spraying condition test
Base film test
Exterior test
Peeling test
Laminating test
Alien substance test
Flatness test
Shipping test |
|
| |
| |

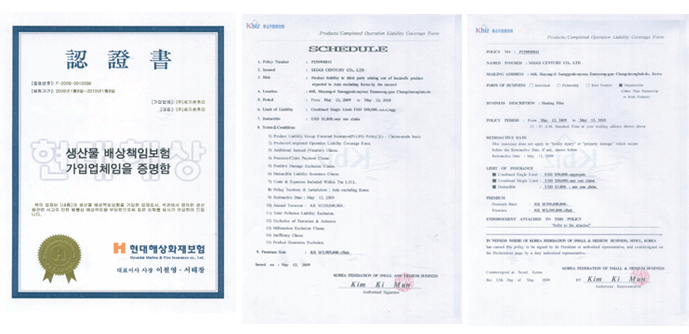

| Products liability insurance
|
| |
Seggi Century is subscribed to the PL(Product liability Insurance) program in order to keep the promises on quality assurance. |
| |
 |
| |
| Film selection method
|
| |
| Functions of films |
|
Required functions |
Items to check |
Film area |
Heat contraction ra |
Check a width difference of the base and laminex films when joining them. |
Moisture entry prevention structure |
Check if reflected in the film design. |
Adhesion for peeling |
Peel off the film to check. |
Scratches on the surface |
Visually check for holes or cuts. |
Insulation condition |
Line tape : Check if vinyl or transparent OPP is used.
Plane tape : Check if the PE material is thick enough. |
Hardening |
Check if the heat value is sufficient by testing the ohm(Ω) resistance. |
Copper area |
Copper width |
The wider the better it prevents overheating during conduction. |
Copper thickness |
The narrower the film intervals are, the better it prevents sparks. |
Types of copper |
Tough pitch copper(pure copper)'s conduction rate is 106%
Phosphorous deoxidized copper is 86%. |
Types of permissions |
Check according to the thickness and the width. |
Printing area |
Regular carbon surface |
Check it with a microscope. |
Spark prevention design |
See if a structure to prevent sparks is reflected in the carbon printing design. |
|
|
